3400-Watt-Hour Residential Backup Power Solution

Description

short

Back up essential circuits in your home with the 3,400-Watt Hour Yeti 1000X Home Energy Storage Kit. Packaged together to include the Yeti Home Integration Kit transfer switch, Expansion Batteries, and the Link Expansion Module – this bundle is your one stop shop for your portable home energy needs.

features

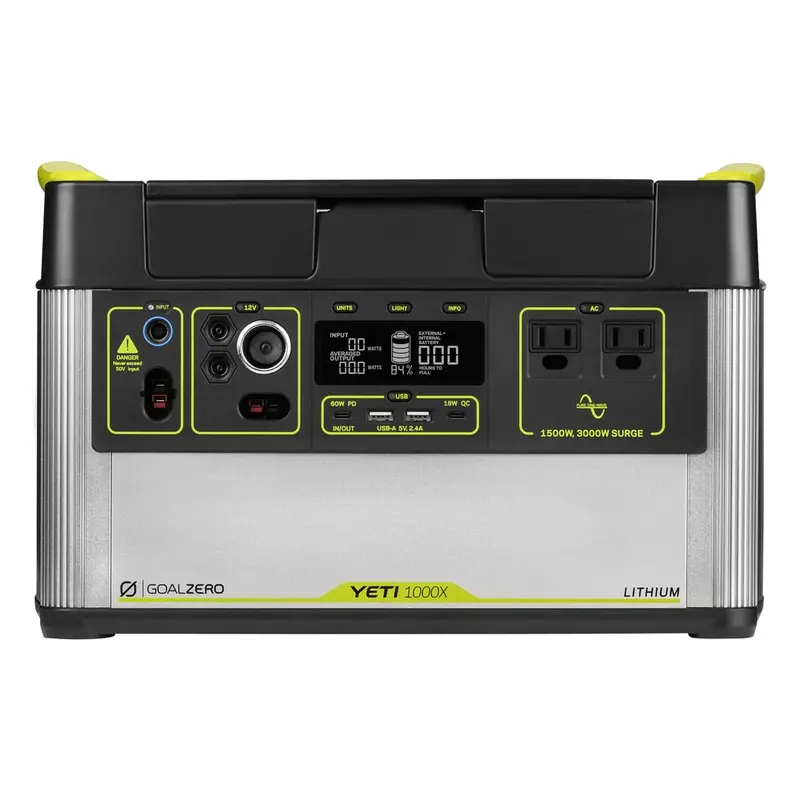

YETI 1000X HIGHLIGHTS

• Goodbye Gas Generator. Hello Yeti X.
  With a lithium-ion battery at its core, the Goal Zero Yeti X equips you with safe, clean, portable power for camping, tailgating, off-grid events, workshops, and emergency power during an outage.
• Faster Charging from the Wall
  Yeti 1000X offers up multiple recharging options. Included 120W Power Supply plugs into the 8mm charging port to recharge the Yeti in 9 hours. Industry-leading 600W High Power Port lets you recharge in as little as 2 hours using the Yeti X 600W Power Supply (sold separately).
• Versatile Port Options
  Power a wide range of devices with seven different port options including fast-charging 60W USB-C Power Delivery, multiple USB-A ports, regulated 12V, and two 120V AC ports.
• Experience Unlimited Power
  Charge the Yeti 1000X from the sun with our portable solar panels while away from the grid, and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible.

box1

BACK UP YOUR HOME

• Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.
• Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more. Integrate directly with your home’s circuits for a more seamless backup power experience.
• Integrate directly with your home’s circuits for a more seamless backup power experience using the Yeti Home Integration Kit. Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.

box2

YETI HOME INTEGRATION KIT HIGHLIGHTS

• The Home Integration Kit (HIK) is a Reliance Pro/Tran 2 Series 15-Amp, 4-Circuit 120V Manual Transfer Switch – Customize your backup power by working with a licensed electrician and selecting up to 4 circuits from your breaker panel.
• Suggested circuits include fridge/freezer, garage door, outlets in main living areas, light switches, etc.
• Yeti Extension Cable includes 10ft 14AWG to connect your Yeti Portable Power Station.

tech

CHARGE TIMES

• AC Wall Charger
• 120W: 9 Hours
• 230W: 4.5 Hours
• 600W: 2 Hours

Battery Details

• Cell chemistry: Li-ion NMC
• Pack capacity: 983Wh (10.8V, 91Ah)
• Single Cell Equivalent Capacity: 273Ah @ 3.6V
• Pack Lithium Content: 82g
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: MPPT charge controller

Ports

• USB-A port (output): 5V, up to 2.4A (12W max), regulated
• USB-C port (output): 5 – 12V, up to 3.0A (18W max), regulated
• USB-C PD port (input / output): 5 – 20V, up to 3.0A (60W max), regulated
• 6mm port (output, 6mm): 12V, up to 10A (120W max), regulated
• 12V car port (output): 12V, up to 15A (180W max), regulated
• 12V High Power Port (output): 12V, up to 15A (180W max), regulated
• 120V AC Inverter: 120VAC 60Hz, 12.5A (1500W, 3000W surge) (output, pure sine wave)
• Charging port (input, 8mm): 14-50V, up to 10A (150W max)
• Charging High Power Port (input): 14-50V, up to 50A (600W max)
• Expansion Module port: Covered port under the lid. To be used with Goal Zero expansion modules only.

General

• Chainable: No
• Weight: 31.68 lbs (14.37 kg)
• Dimensions: 15.25 x 10.23 x 9.86 in (38.74 x 25.98 x 25.04 cm)
• Operating usage temp.: 32-104 F (0-40 C)
• Certs: CE FCC
• Warranty: 24 months

Charge Times

• Max Input from Yeti Tank to
• Goal Zero Yeti 1000/1000X: 454-605W
• Goal Zero Yeti 1400/1500X: 454-750W
• Goal Zero Yeti 3000/3000X: 750W
• Goal Zero Yeti 6000X: 750W

General

• Product SKU: 98210
• Weight: 1.5 lbs (680 g)
• Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
• Warranty 12 months
• YETI X 120W POWER SUPPLY
• Gauge: 16AWG
• Cable Length: 9′ 4″
• Dimensions: 2.5 x 5.9 x 1.4 in (6.5 x 15 x 3.5 cm)

Ports

• Do not exceed 22V input
• 8mm Charging Port (input): 14 – 22V Do not exceed 150W (10A) per port
• External Battery Connector (output): 65A charge controller
• External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
• YETI X 120W POWER SUPPLY
• Input: AC Wall Plug 100-240V – 50/60Hz 3.0A
• Output: 8.0mm 16V- 7.5A, 120W

Charge Times

• Wall Charger (120W): 11hrs per tank

Battery Details

• Lead Acid (AGM)
• 1200Wh (12V, 100Ah)

Ports

• Expansion port male connector (input/output) 100A Max
• Expansion port female connector (input/output) 100A Max

General

• Product SKU: 23105
• Dims 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)
• Weight 77.1 lbs (34.97 kg)
• Warranty: 12 Months
• Female EC8 to ring terminal: 27 in, 8 AWG
• Male EC8 to ring terminal: 39 in, 8 AWG

Ports

• Voltage: 120 Single-Phase
• Frequency: 60 Hertz
• Rated Watts: 1875 Watts
• Rated Amps: 15A @ 120 Volts (Single Phase)
• Number of Circuit Breakers: 4
• Max Generator Input: 15 Amps
• Maximum Wattage: 1875 Watts
• Transfer Switch Circuits: 15A 120V
• Circuit Breaker Protection: Each Circuit

General

• Product SKU: 44060
• Made: USA
• Weight: 9.5 lbs (4.3 kg)
• Dimensions: 7.75 x 11.25 x 4.5
• Enclosure: NEMA 1R
• Conduit Length: 18
• UL Listed: Yes
• Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up
