7.8Kwh Off-Grid Home Power Backup

Description

short

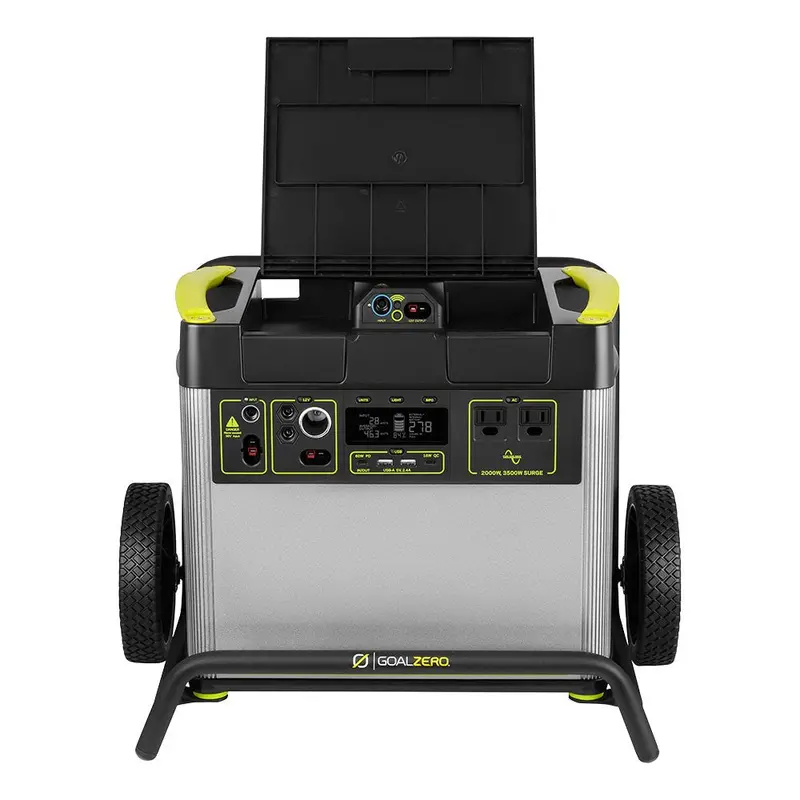

The 2.5+ day backup system. This all-in-one bundle provides roughly 7,800 Watt Hours of power for your portable home energy needs. Equipped with a Yeti 3000X, Yeti Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, and the Link Expansion Module.

features

YETI 3000X HIGHLIGHTS

• Goodbye Gas Generator. Hello Yeti X. With a lithium-ion battery at its core, the Goal Zero Yeti X equips you with safe, clean, portable power for camping, tailgating, off-grid events, workshops, and emergency home backup.
• Take Your Wall Outlet Anywhere Increased 2000W AC (3500W Surge) inverter allows you to run power-hungry devices and appliances with confidence. Our new industry-leading inverter can handle surges from power tools, medical devices, and home appliances, including full-size refrigerators.
• Versatile Port Options Power a wide range of devices with seven different port options including fast-charging 60W USB-C Power Delivery, multiple USB-A ports, regulated 12V, and two 120V AC ports.
• Experience Unlimited Power Charge the Yeti 3000X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible.
• Power in the Palm of Your Hand Monitor, control, and optimize your power usage from anywhere with Yeti App 3.0. Features remote control of power in/out, real-time power consumption notifications, and charging profiles to optimize your battery life. Learn more about the Yeti App 3.0.

box2

YETI HOME INTEGRATION KIT HIGHLIGHTS

• The Home Integration Kit (HIK) is a Reliance Pro/Tran 2 Series 15-Amp, 4-Circuit 120V Manual Transfer Switch – Customize your backup power by working with a licensed electrician and selecting up to 4 circuits from your breaker panel.
• Suggested circuits include fridge/freezer, garage door, outlets in main living areas, light switches, etc.
• Yeti Extension Cable includes 10ft 14AWG to connect your Yeti Portable Power Station.

box1

BACK UP YOUR HOME

• Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.
• Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more. Integrate directly with your home’s circuits for a more seamless backup power experience.

Find Authorized Home Installers

tech

YETI CHARGE TIMES

• AC Wall Charger
• 230W: 14 Hours
• 600W: 6 Hours
• Solar
• 100W (Boulder/Nomad 100 (BC) ): 36-72 Hours
• 200W (Boulder (BC/Nomad) ): 18-36 Hours
• 400W (Boulder/Nomad 200 X 2): 9-18 Hours
• 600W (Boulder/Nomad 200 X 3): 6-12 Hours
• 800W (Boulder/Nomad 200 X 4): 6-9 Hours
• 1200W (Boulder/Nomad 200 X 6): 6 Hours

BATTERY DETAILS

• Cell chemistry: Li-ion NMC
• Pack capacity: 3032Wh (10.8V, 280.8Ah)
• Single Cell Equivalent Capacity: 842.4Ah @ 3.6V
• Pack Lithium Content: 253g
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: MPPT charge controller

PORTS

• USB-A port (output): 5V, up to 2.4A (12W max), regulated
• USB-C port (output): 5 – 12V, up to 3.0A (18W max), regulated
• USB-C PD port (input / output): 5 – 20V, up to 3.0A (60W max), regulated
• 6mm port (output, 6mm): 12V, up to 10A (120W max), regulated
• 12V car port (output): 12V, up to 13A (160W max), regulated
• 12V High Power Port (output): 12V, up to 30A (360W max), regulated (front face/under lid)
• 120V AC Inverter: 120VAC 60Hz, 16.5A (2000W, 3500W surge) (output, pure sine wave)
• Charging port (input, 8mm): 14-50V, up to 10A (150W max) (front face/under lid)
• High Power charging port (input): 14-50V, up to 50A (600W max)
• Expansion Module port Covered port under the lid. To be used with Goal Zero expansion modules only.

GENERAL

• Kit SKU: 44534
• Chainable: No
• Simultaneous Recharge & Discharge: Yes
• Product SKU: 36400
• Weight: 69.78 lbs (31.65 kg)
• Dimensions: 15.25 x 10.23 x 13.6 in (38.74 x 25.98 x 34.54 cm)
• Operating usage temperature:32-104 F (0-40 C)
• Warranty: 24 months

tech2

HIK PORTS

• Voltage: 120 Single-Phase
• Frequency: 60 Hertz
• Rated Watts: 1875 Watts
• Rated Amps: 15A @ 120 Volts (Single Phase)
• Number of Circuit Breakers: 4
• Max Generator Input: 15 Amps
• Maximum Wattage: 1875 Watts
• Transfer Switch Circuits: 15A 120V
• Circuit Breaker Protection: Each Circuit

HIK GENERAL

• Product SKU: 44060
• Made: USA
• Weight: 9.5 lbs (4.3 kg)
• Dimensions: 7.75 x 11.25 x 4.5
• Enclosure: NEMA 1R
• Conduit Length: 18
• UL Listed: Yes
• Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up

tech3

YETI LINK GENERAL

• Product SKU: 98210
• Weight: 1.5 lbs (680 g)
• Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
• Warranty 12 months
• YETI X 120W POWER SUPPLY
• Gauge: 16AWG
• Cable Length: 9′ 4″
• Dimensions: 2.5 x 5.9 x 1.4 in (6.5 x 15 x 3.5 cm)

YETI LINK PORTS

• Do not exceed 22V input
• 8mm Charging Port (input): 14 – 22V Do not exceed 150W (10A) per port
• External Battery Connector (output): 65A charge controller
• External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
• YETI X 120W POWER SUPPLY
• Input: AC Wall Plug 100-240V – 50/60Hz 3.0A
• Output: 8.0mm 16V- 7.5A, 120W

tech4

YETI TANK BATTERY CHARGE TIMES

• Wall Charger (120W): 11hrs per tank

YETI TANK BATTERY DETAILS

• Lead Acid (AGM)
• 1200Wh (12V, 100Ah)

YETI LINK CHARGE TIMES

• Max Input from Yeti Tank to
• Goal Zero Yeti 1000/1000X: 454-605W
• Goal Zero Yeti 1400/1500X: 454-750W
• Goal Zero Yeti 3000/3000X: 750W
• Goal Zero Yeti 6000X: 750W

YETI TANK PORTS

• Expansion port male connector (input/output) 100A Max
• Expansion port female connector (input/output) 100A Max

YETI TANK GENERAL

• Product SKU: 23105
• Dims 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)
• Weight 77.1 lbs (34.97 kg)
• Warranty: 12 Months
