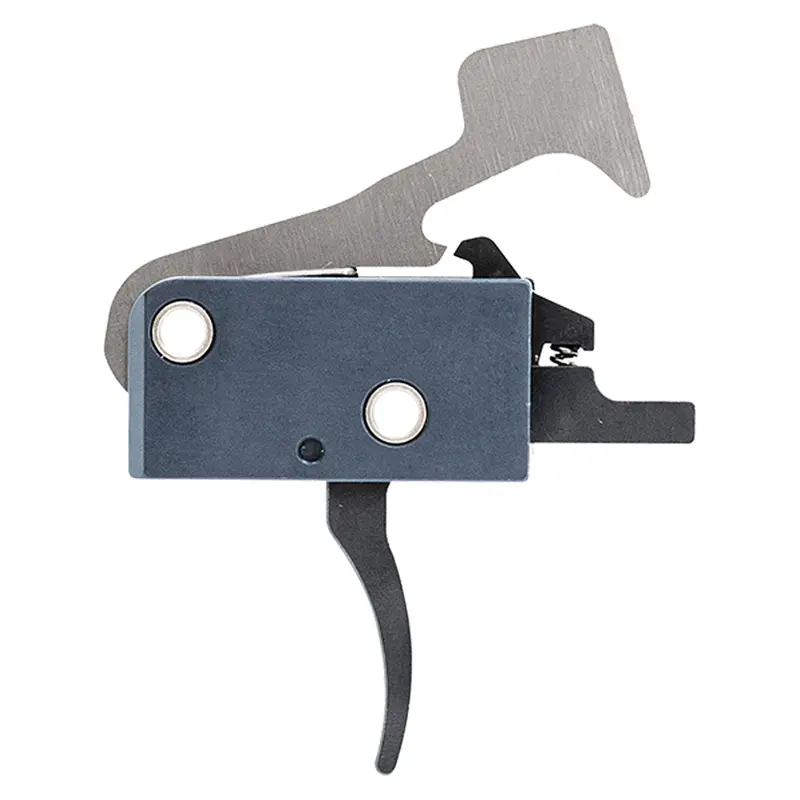

Timney Impact Shotgun Trigger Assembly

Description

Description

Timney’s engineers have expertly crafted the Impact SG at an affordable price without compromising on quality. Made specifically for AR-style and magazine-fed shotguns, this trigger is precision machined from premium materials for long-lasting performance. The aluminum alloy housing is anodized blue for weather and corrosion resistance, while the hammer is made from heat-treated tool steel with a nickel plate finish for optimal lubricity and trigger performance. For a smooth, effortless feel, the trigger shoe and disconnector are also made from heat-treated tool steel. With a factory-set pull weight of 3-4 pounds, this trigger is reliable and durable.

Trigger Adjustment Tips

TRIGGER ADJUSTMENT GUIDE OVERTRAVEL:

1. Remove the ammunition source and double-check to ensure the chamber is empty. Pointing the barrel away from yourself, dry fire the trigger

2. Carefully tighten the overtravel screw in until it hits the trigger, then back it out about 1/6 of a turn (or one flat of the hex wrench).

3. It should move freely and fire with ease. You shouldn’t have to “chase” the trigger more than about .015.

PULL WEIGHT ADJUSTMENT:

NOTE: Please be careful as you adjust the pull weight. It is important that you do NOT take the pull weight too low; it must maintain spring pressure or else it will bump/slam fire. When you pull the trigger, with the bolt open, the trigger’s spring should return it to the neutral position; if it doesn’t, then you do not have enough spring pressure.

1. To adjust spring pressure, turn the screw clockwise until you can feel the pressure of the spring on the actual trigger lever.

Specs
